| Prevention of dust emissions in a handling and processing area where alternately BAUXITE, SILICA and LIMESTONE are transported. |
|
|
| All materials to be handled will pass crushing and screening units before being stockpiled.
Handling capacity is 250 tons per hour, the feed granularity 0 - 12 mm contains 20 % of fines.
|
|
|
 |
 |
|
|

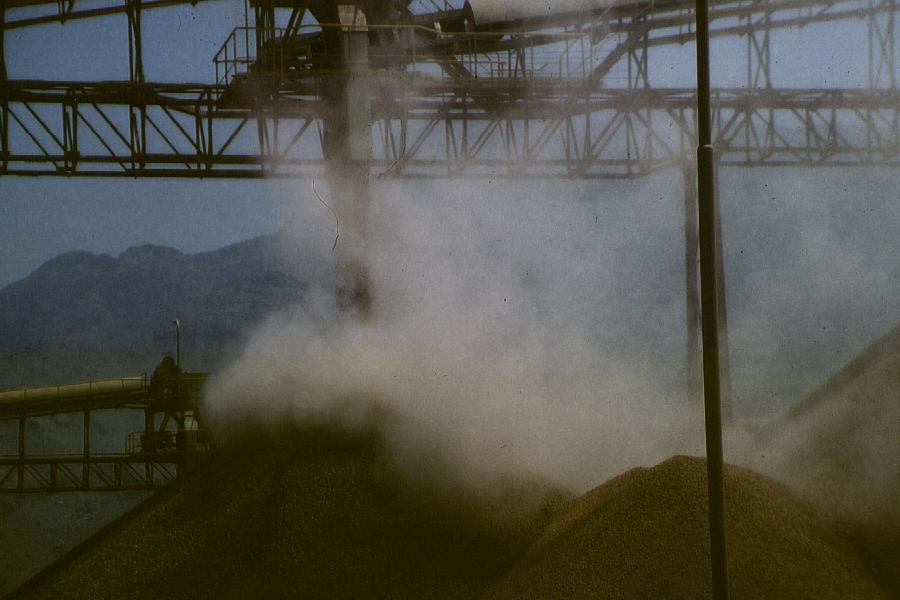

| The photos show the stockpiling of LIMESTONE with and without the use of an active ECS dust suppression system. |
|
| The maximum delivery capacity of the ECS installation is 2000 litres per hour |
| The actual quantity of service fluids used is: |
| power drain |
|
725 |
litres of water per hour |
|
0,18 |
litres of tenside per hour |
|
2,2 |
kw |
|
|
|
| Assuming a handling capacity of 250 tons per hour the additional humidity in the Material is 0.29% |
|
|
| The proportion of dust still remaining in the surrounding air is £ 30mg/m³ |
