| Prevention of dust emissions at a ship unloader plant. |
|
|
| The CEMENT CLINKER to be handled is taken by a grab from the ship and fed via a surge bin onto the conveyor belt system to the clinker storage hall. |
|
|
 |
 |
|
|

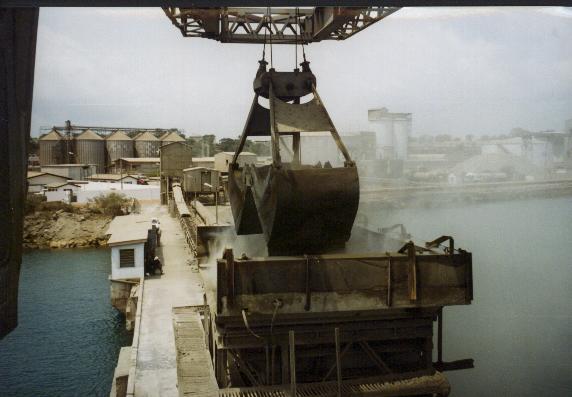

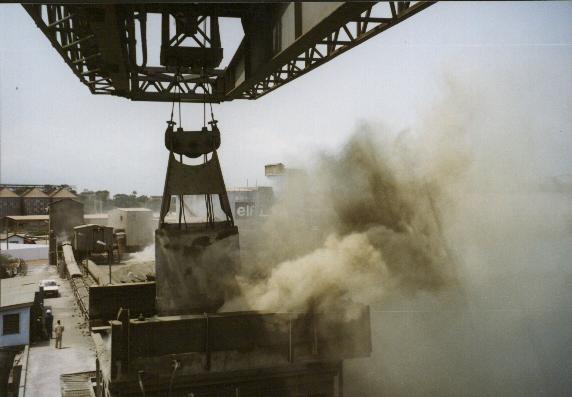

| The photos show the transfer CRANE GRAB Þ SURGE BIN with and without use of an active ECS dust suppression system. |
|
| capacity of the grab is |
10 tons per load cycle |
| emtying time is |
8 seconds |
| unloading capacity is |
400 tons per hour |
|
| The maximum delivery capacity of the ECS installation is 4000 litres per hour |
| The actual quantity of service fluids used is: |
| power drain |
|
1160 |
litres of water per hour |
|
0,29 |
litres of tenside per hour |
|
4,0 |
kw |
|
|
|
| Related to the handling capacity of 400 tons per hour the additional humidity in the Material is 0.29% |
|
|
| The proportion of dust still remaining in the surrounding air is £ 50mg/m³ |
